Drying Egg Shells

Several types of dryers are used industrially for eggshell processing, each with its own characteristics. The choice depends on required drying speed, energy efficiency, and final product quality.

1. Drum Dryers

Drying takes place inside a rotating drum, where the shells are heated through direct or indirect contact with hot air.

• Standard drum dryers — provide high-temperature drying of large volumes in a rotating drum. Effective but prone to product clumping and wall adhesion. The heavy mechanism with wear-prone parts is more demanding to maintain.

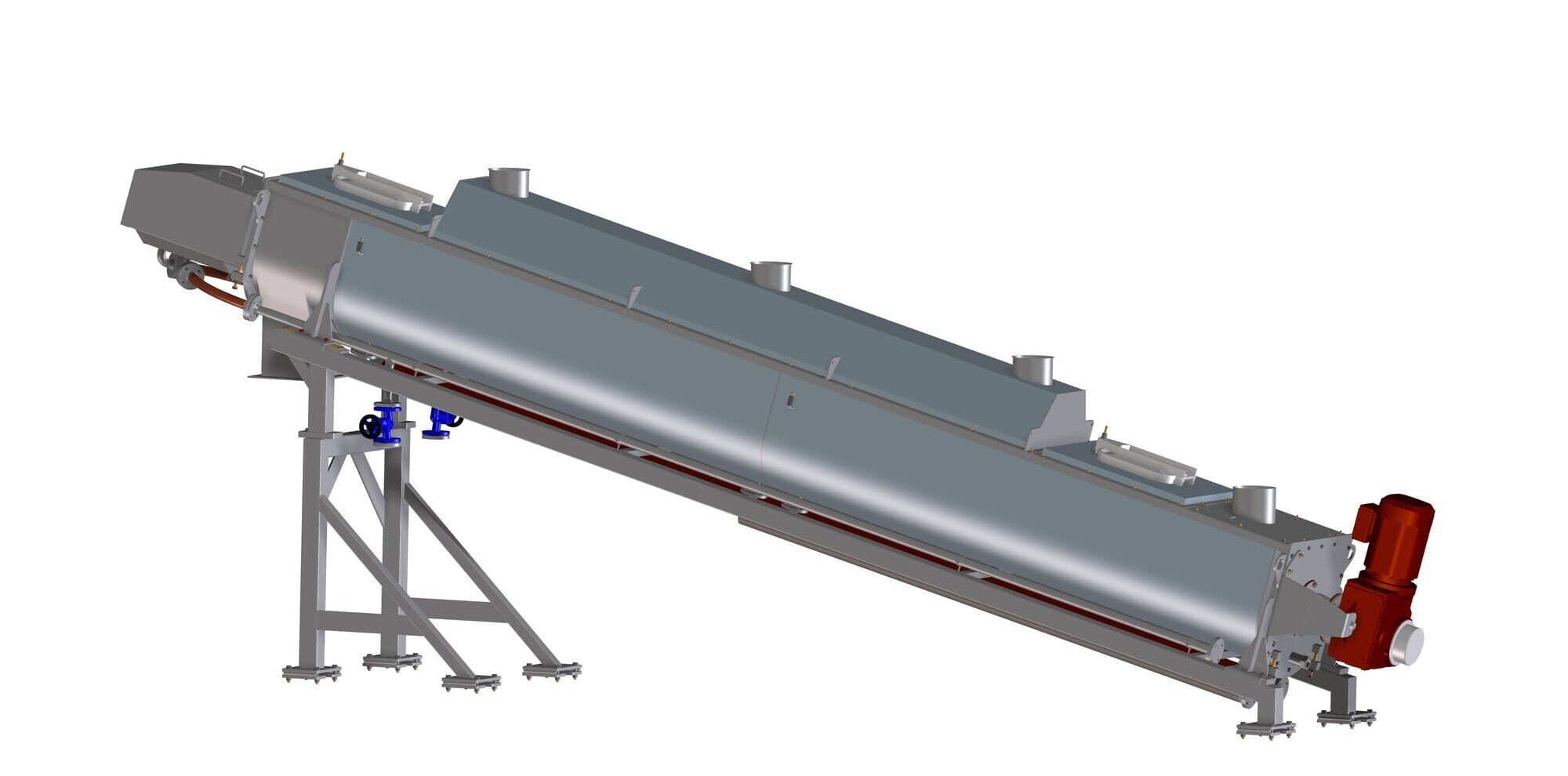

• Drum dryers with an internal screw — equipped with a screw mechanism that moves and distributes the product evenly. Designed for smaller, more typical eggshell volumes. Heating is indirect via a heat-transfer fluid (e.g. hot oil) circulating in double-walled drums. Indirect heating has thermal losses, and the low airflow through the screw limits efficient moisture removal. Product may adhere to the walls, and screw replacement is a costly procedure.

2. Vibratory (Fluid-Bed) Dryers

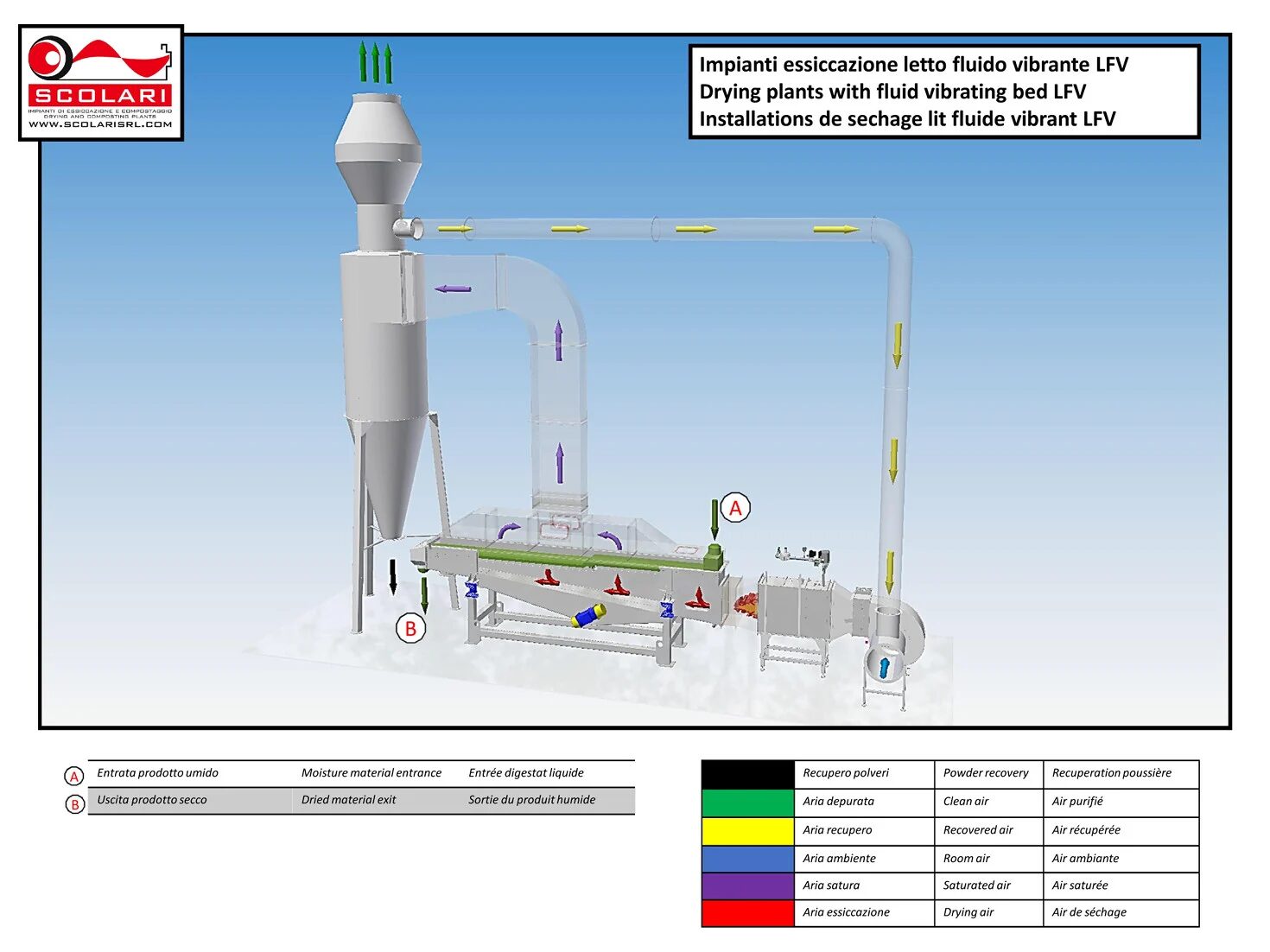

The most popular type for eggshell processing. They operate on the "fluidized bed" principle: the shells are kept suspended in a stream of hot air and exposed to intensive yet brief high-temperature treatment. Vibration ensures uniform product distribution, accelerating drying and preventing scorching. This type is well suited for rapid moisture removal with minimal structural damage to the shell.

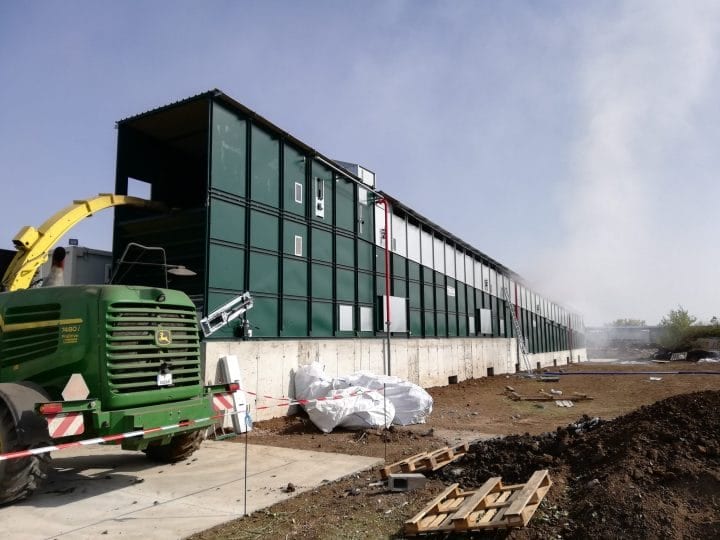

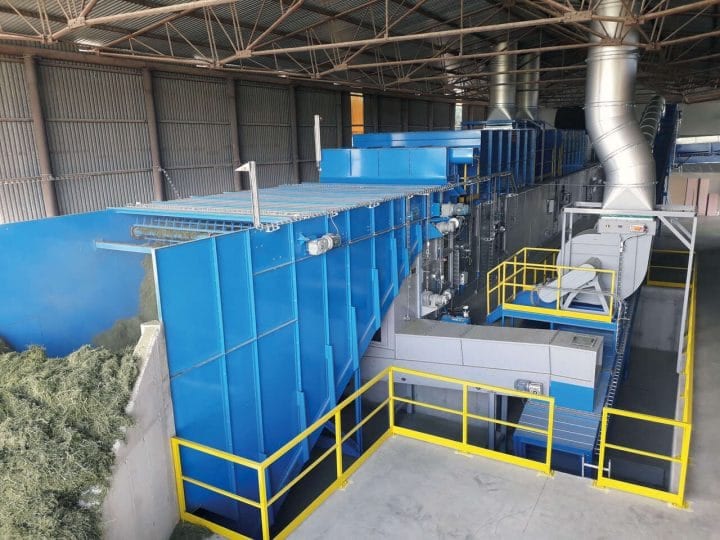

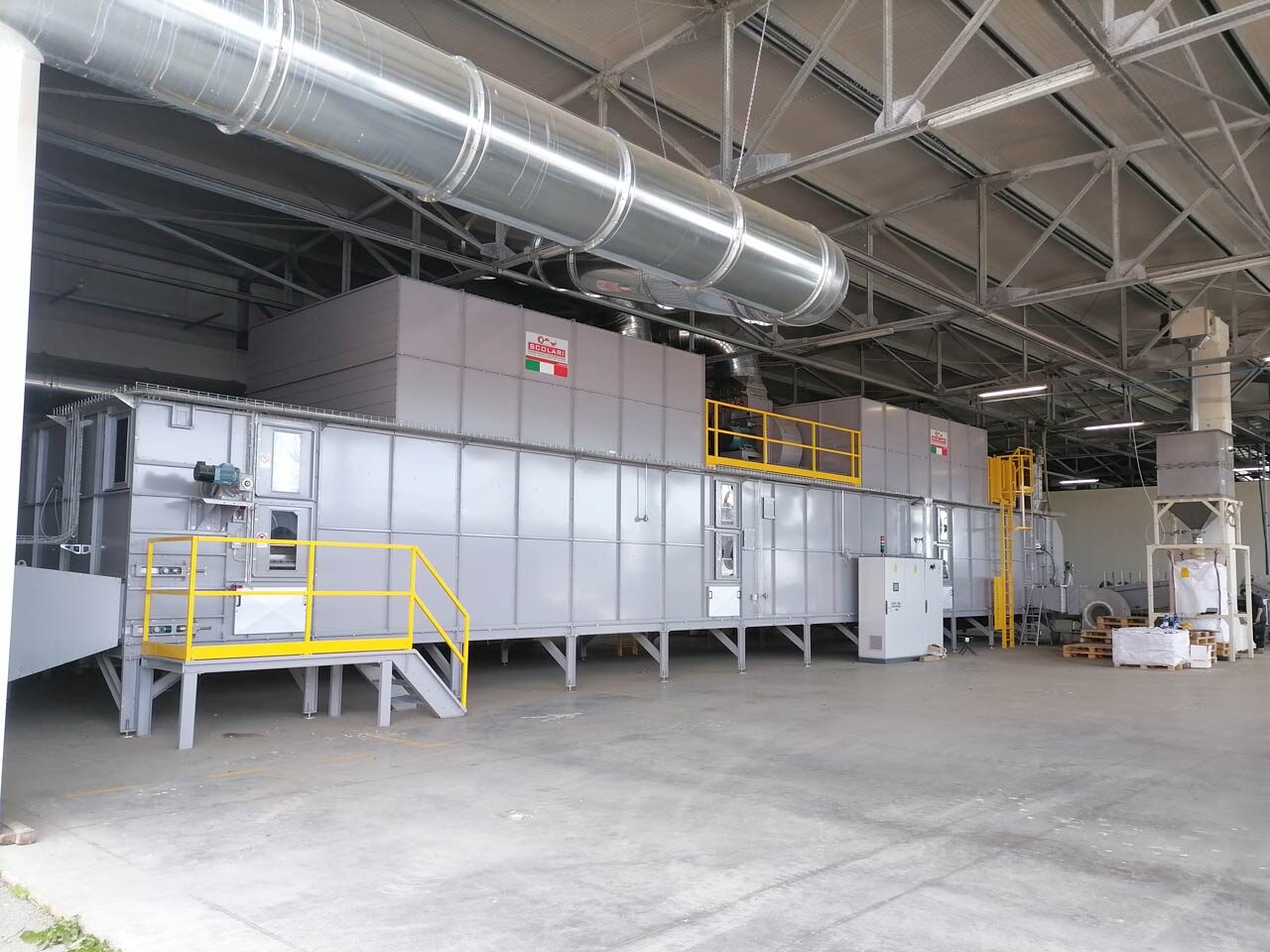

3. Conveyor Dryers

The product is placed on a moving belt and passes through drying zones with adjustable temperature settings. This method allows precise control over the dehydration process, ensuring uniform drying. Conveyor dryers are particularly suited to large-scale operations with continuous material flow. For very high production capacities, a conveyor dryer can be more economical than installing multiple vibratory units.

The choice of dryer type depends on the volume of raw material, final moisture requirements, energy efficiency, and specific process conditions. In general, at typical processing plants the vibratory dryer is by far the most common solution. Drum dryers with an internal screw are seen less frequently.

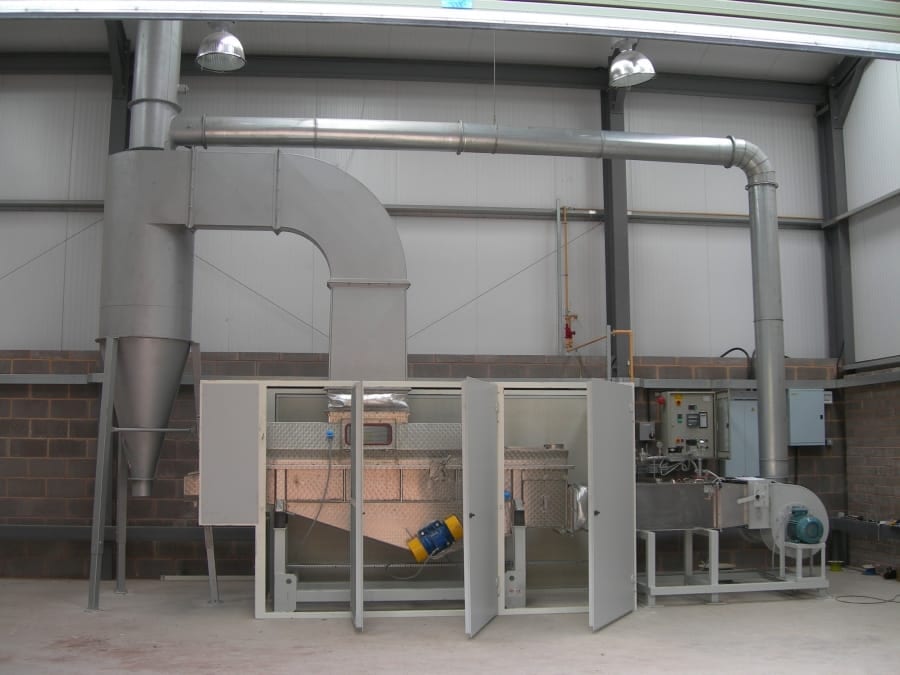

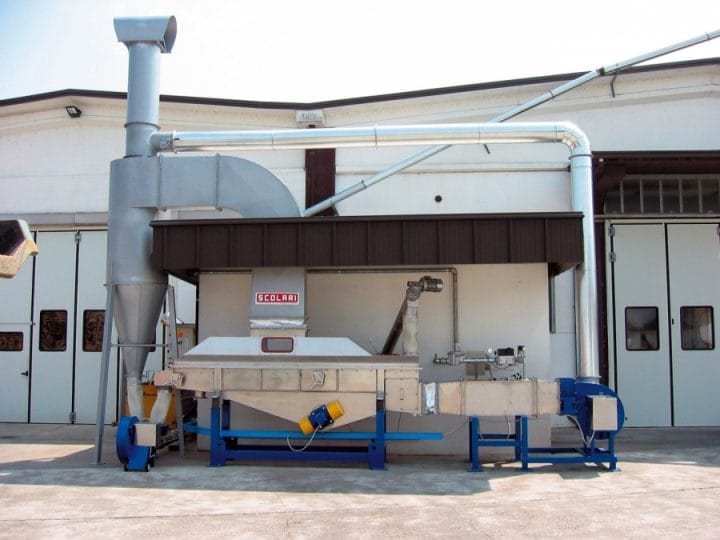

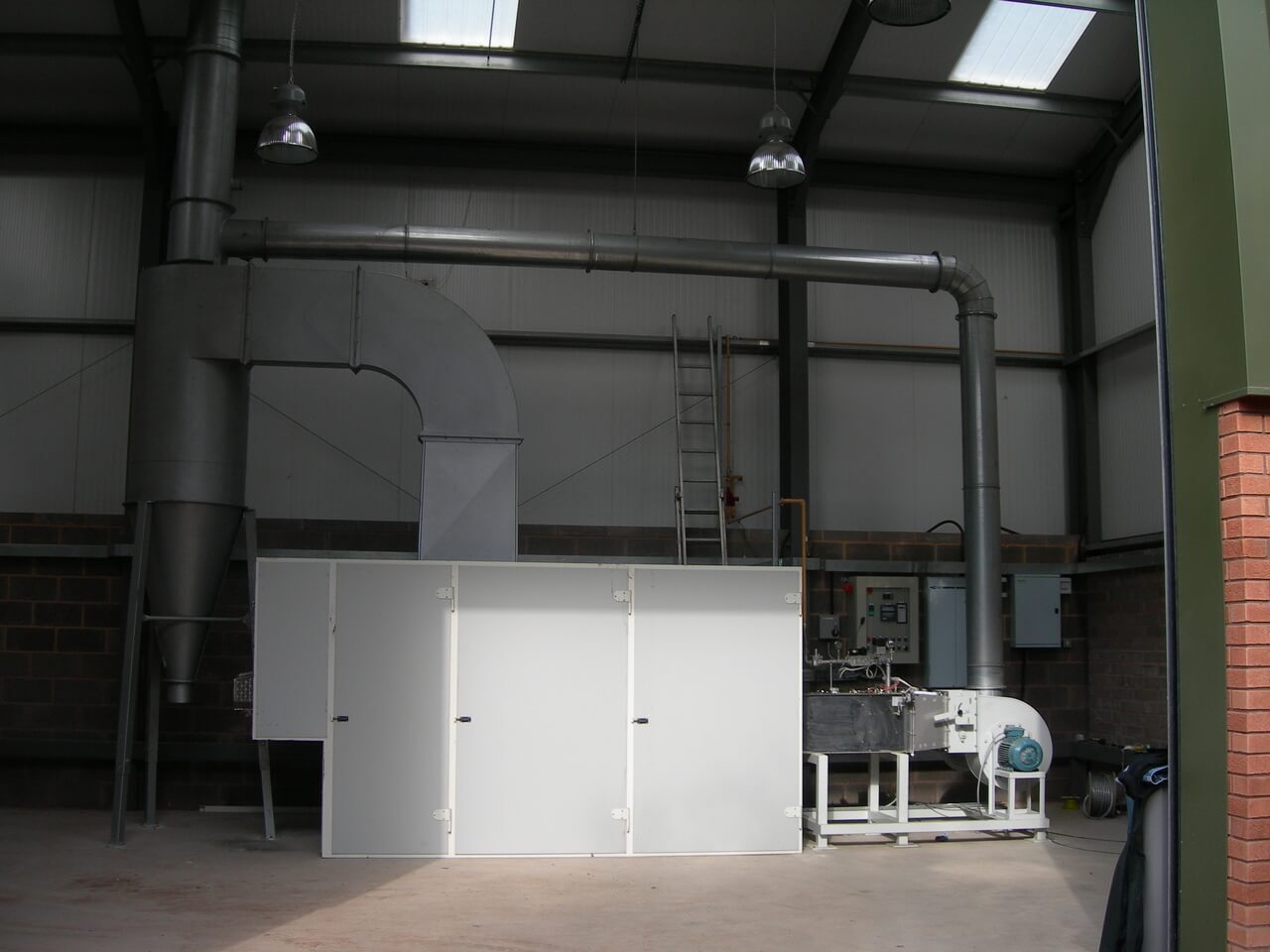

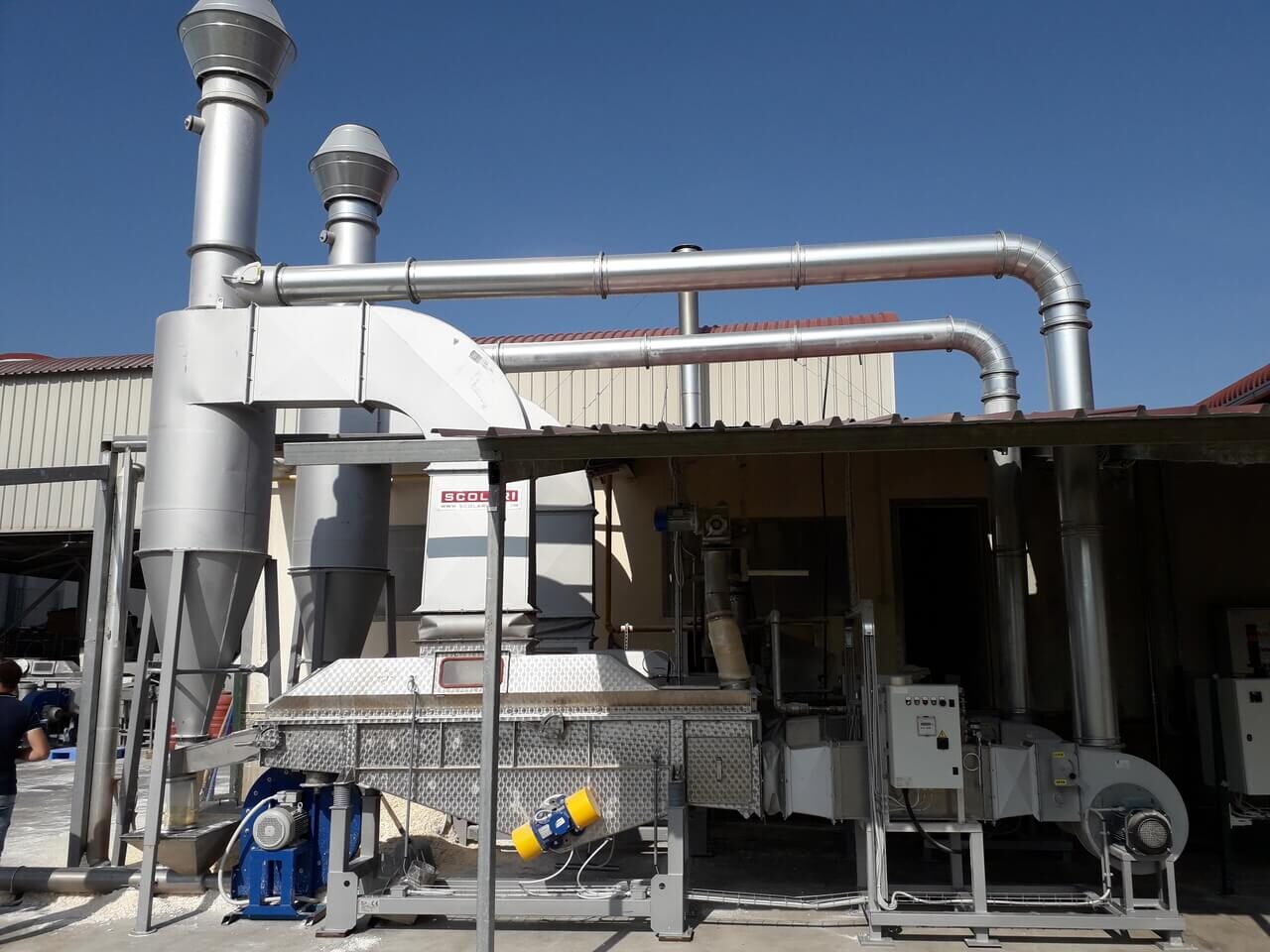

Vibratory dryers play a central role in eggshell processing thanks to their high efficiency, uniform drying, and cost-effectiveness. This type of equipment uses "fluidized bed" technology: shells are held in suspension in a stream of hot air and subjected to intensive yet gentle drying.

1. Fast and Efficient Drying

Thanks to intensive contact with high-temperature hot air (200–250 °C), eggshells lose their moisture within minutes, significantly reducing production cycle time. High drying speed is especially important for processing plants with a continuous feed of raw material. Moreover, this temperature completely eliminates pathogenic and other microorganisms, ensuring long-term storage of the dried shell.

2. Uniform Drying Without Overheating

Fluidized-bed technology provides even heat distribution throughout the entire product mass. Unlike drum dryers, where localised overheating can occur, vibratory dryers prevent scorching, preserving the shell's structure and nutritional content.

3. Gentle Product Handling

Vibratory drying is less aggressive than drum or screw drying systems. This is particularly important when processing crushed eggshells, as it minimises mechanical breakdown and the formation of fine dust particles.

4. Energy Efficiency and Cost Reduction

Vibratory dryers feature low energy consumption due to optimised heat distribution and reduced drying time.

A built-in hot-air recirculation system further reduces fuel costs, making the process more economical compared to technologies without recirculation.

5. Compact Design and Easy Integration

Vibratory dryers occupy less floor space than conveyor or drum systems and can be easily integrated into existing processing lines. Their simple construction and high degree of automation minimise operator involvement, reducing maintenance costs.

6. Robust Construction

Scolari has been manufacturing vibratory dryers for over 30 years, accumulating broad experience across a wide range of materials. Their dryers are proven against heavy products such as crushed stone, abrasive materials such as sand, and aggressive media such as salt and other chemical substances. Eggshell drying is therefore a straightforward application for these machines.

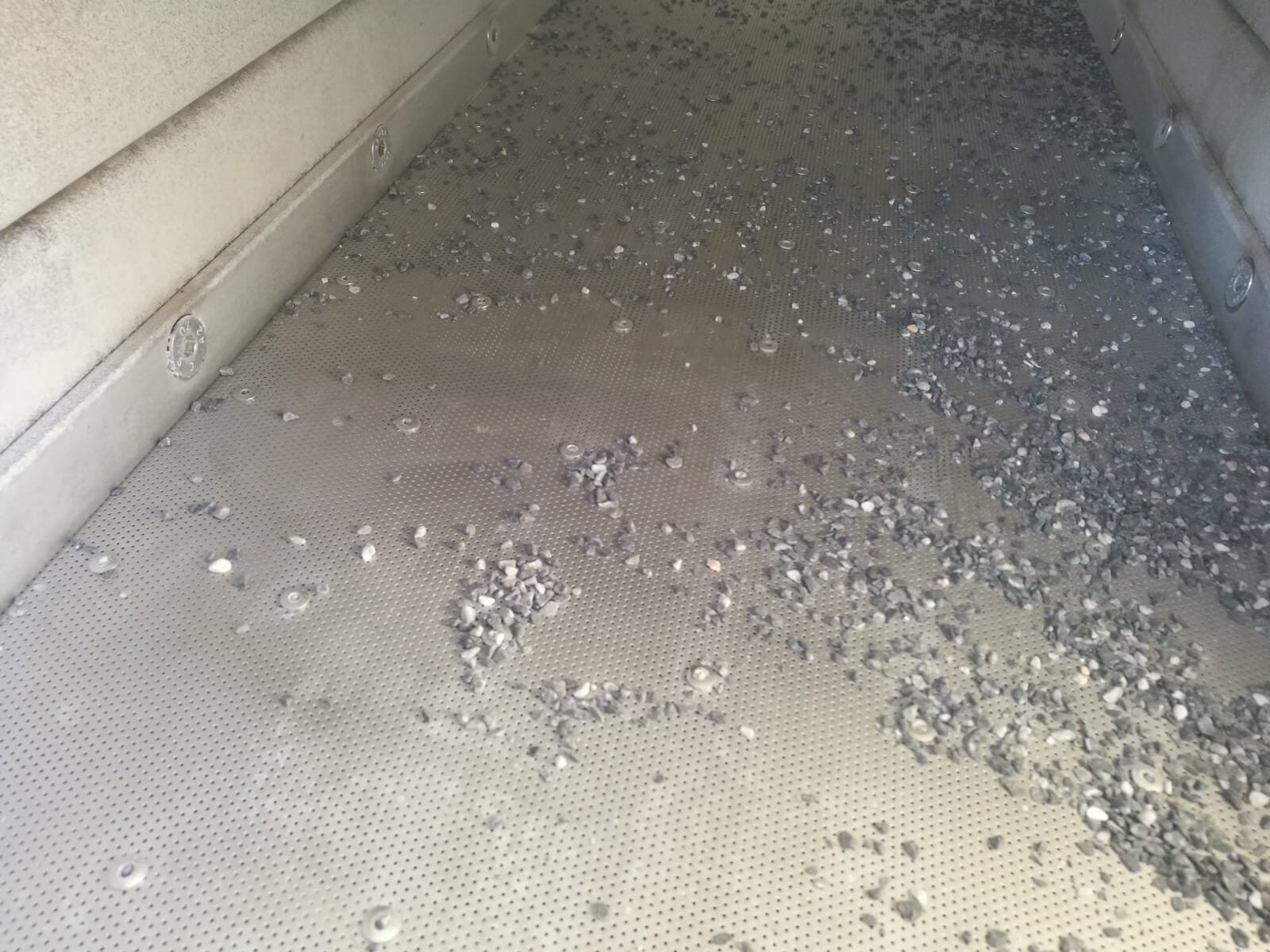

The vibratory dryer has no large moving parts. The product is kept in a semi-suspended state (the so-called fluidized bed), so friction against the dryer internals is minimal.

7. Maintenance and Repair

Because the dryer has no large rotating mechanisms, maintenance is genuinely simple — mainly inspection and monitoring of key components.

The absence of wear-prone parts ensures long operational life without costly repairs (as is often required with drum dryers).

8. Easy Cleaning

The Scolari vibratory dryer is designed so that sticky eggshell residues do not impede the drying process. With a properly functioning centrifuge, the dryer typically needs washing only once every 1–3 months. The cleaning procedure is straightforward: water drains easily through inclined lower surfaces and dedicated drain hatches.

9. Hygiene and Compliance with Food Industry Standards

Most vibratory dryers are manufactured from stainless steel, ensuring compliance with food and pharmaceutical industry requirements.

Conclusion

Vibratory drying delivers high throughput, minimal energy consumption, and optimal final product quality. These advantages make it one of the most effective solutions for processing eggshells for food, feed, and pharmaceutical industries.
